Building Custom MES Extensions with Mendix Low-Code and SAP Integration
Introduction
Manufacturing Execution Systems (MES) are essential for managing shop floor activities—but there is no commercial MES available that can meet all plant-specific needs. To fill the gaps between MES, ERP, and plant floor personnel, manufacturers need customized dashboards, processes, or interfaces.
However, direct MES extension can be costly, hazardous, and disruptive.
This is where Mendix low-code and SAP integration offer a state-of-the-art solution for manufacturers to quickly develop customized MES extensions without disturbing or disrupting key systems.
Why Manufacturers Need MES Extensions
MES systems are very good at execution; however, manufacturers face challenges such as:
-
Lack of flexibility to modify MES screens or logic
-
Slow change cycles because of vendor lock-in
-
Gaps in visibility between SAP and MES data
-
Workarounds for quality, maintenance, or approvals
-
Challenging role-based or plant-specific workflows
Forward-thinking manufacturers are wisely extending MES instead of replacing it.
Why Mendix for MES Extensions
Mendix is a state-of-the-art low-code platform for complex manufacturing applications.
The key benefits are:
-
Fast application development without heavy coding
-
Native integration capabilities (REST, OData, events)
-
Enterprise-class security and governance
-
Flexible UI for shop floor users
-
Scalability within Siemens and SAP environments
Mendix is a digital extension layer for MES—not a replacement.
Seamless SAP Integration: The Missing Link
In most MES environments, SAP S/4HANA or ECC is a crucial component for:
-
Production orders
-
Bills of materials (BOM)
-
Work centers and routings
-
Inventory and batch information
-
Quality and finance integration
With Mendix, the following SAP integration options are available:
-
SAP OData services
-
REST APIs
-
BAPIs via middleware
-
Event-driven integration with SAP BTP or PI/PO
This ensures a real-time synchronization of SAP, MES, and custom Mendix applications.
Common MES Extension Use Cases with Mendix
With Mendix, manufacturers can develop extensions for:
Shop-Floor Dashboards
-
Real-time production status
-
SAP order progress and MES execution status
-
Role-based views for supervisors and operators
Quality Management Extensions
-
Non-conformance reporting
-
Deviation approvals
-
SAP QM integration for inspection lots
Maintenance & Downtime Apps
-
Operator-driven maintenance requests
-
SAP PM integration
-
Downtime analytics linked to MES events
Custom Operator Workflows
-
Digital checklists
-
Shift handovers
-
Approval flows without MES customization
Supplier & External Portals
-
Secure sharing of production or inventory information
-
SAP-secured data with MES context

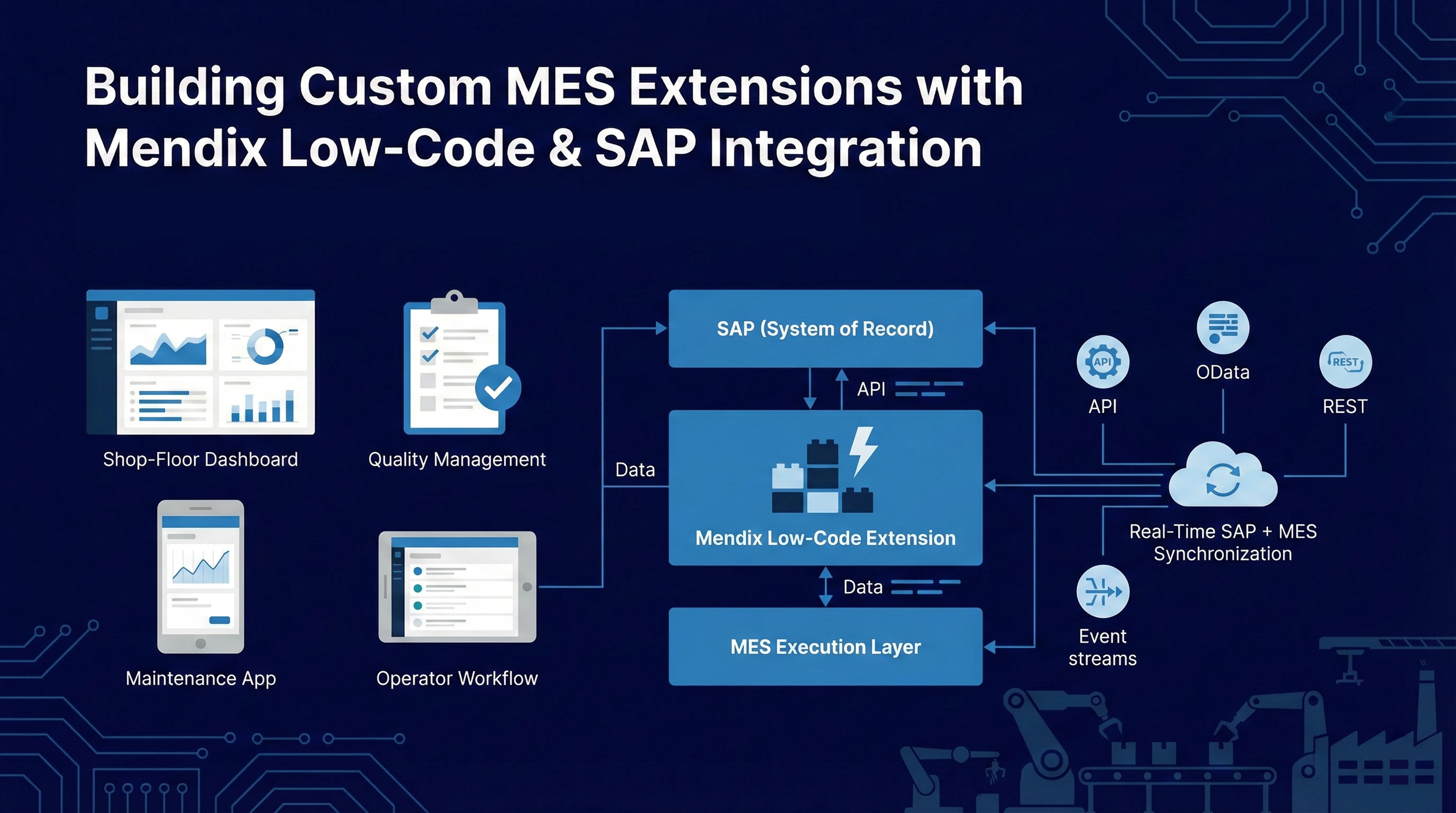

Architecture Pattern: How It Works
The architecture pattern consists of the following components:
-
MES continues to manage execution logic
-
SAP remains the system of record
-
Mendix provides a low-code orchestration and user experience layer
-
Integrations are loosely coupled and managed
-
Business logic resides outside the core MES/SAP systems
This architecture pattern allows for rapid innovation with reduced risk.
Key Benefits
-
Rapid customization without vendor lock-in
-
SAP-MES synchronization in real-time
-
No impact on the core MES or SAP systems
-
Lower development and maintenance costs
-
Improved user experience for shop floor personnel
Conclusion
The need to develop custom code for MES extensions is a thing of the past. With the power of Mendix low-code and SAP integration, manufacturers can innovate at the edge by developing adaptable and scalable MES extensions that keep pace with changing business requirements.
MXTechies assists manufacturers in developing and scaling Mendix-based MES extensions that integrate perfectly with SAP.
